Product model:
EA-51-S2
Outside diameter of air inlet:
Width of air outlet:
Effective length:
Air inlet position:
Side / front
Number of air inlets:
1-6 individual
Texture of material:
6061 aluminium alloy
Service temperature:
- 40 ~ 200℃
Sealing material:
Teflon
Inlet duct mode:
hose joint, external thread joint, internal thread joint, quick assembly joint, welded smooth joint, elbow joint
Air Knife form:
Customized fixed, bilateral umbrella drainage
Withstand voltage:
2Kg/cm3

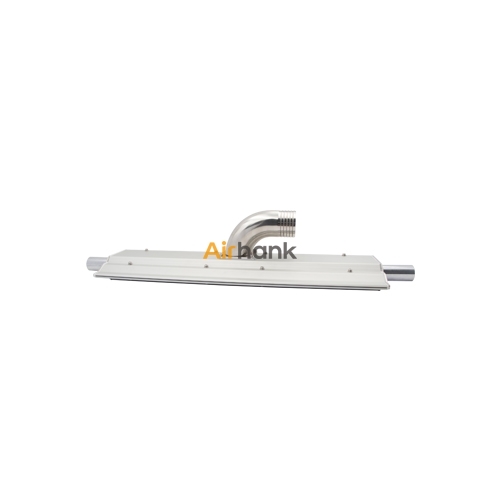

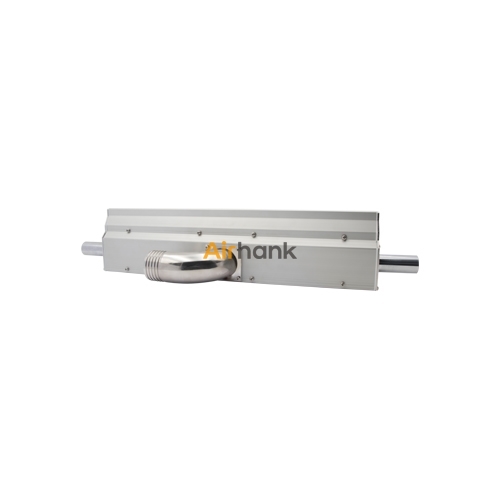

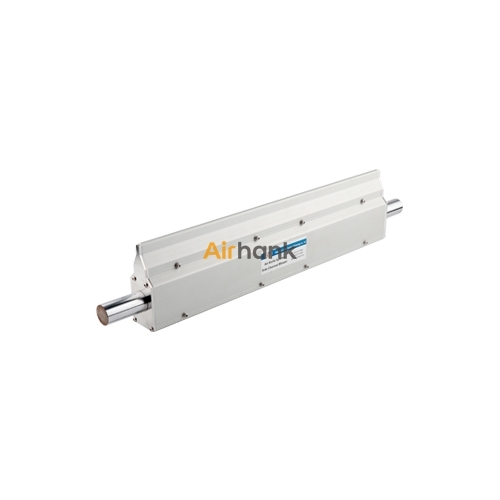

Airhank EA-51-S2
Data download
Data download
Characteristic curve
Performance data

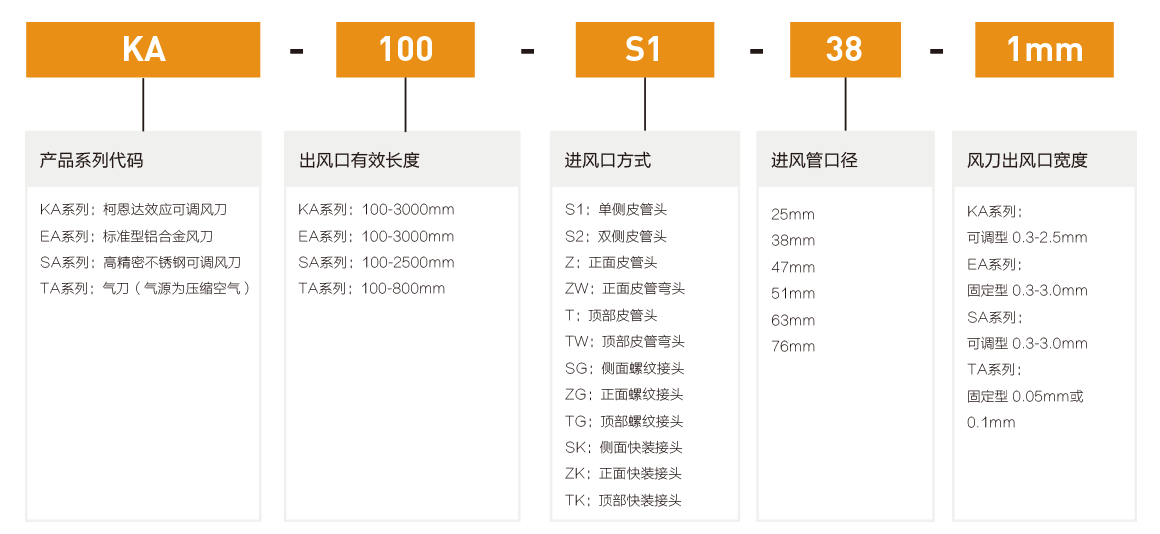

1、Airhank aluminum alloy precision air knife model description, for example: model formula: ea-1200-s2-51-1, set the order size as 1200mm, knife edge width as 1mm, side hose head air inlet, 2 air inlets, air inlet size as 51mm, air outlet size as 1mm.
2、When ordering, please pay attention to the effective length of the air knife, which does not include the thickness of the end covers on both sides of the air knife. The length of the wind blade ordered in the above case is 1200mm, which does not include the side end cover. The actual installation length is 1208mm.
3、For orders beyond the above data range, please call our company at 18028272226.
Technical drawings
